Checkpoint Screening Solutions

Typical Applications:

  • Lobbies
  • Courthouses
  • Commercial Buildings
  • Government Buildings
  • Correctional Facilities
  • Schools
  • Security Sensitive Areas

SecurMAR Security Checkpoint Solution

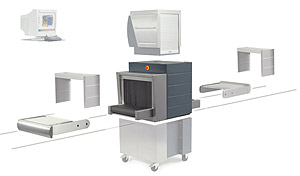

HI-SCAN 5030si X-ray Inspection Systems

HI-SCAN 5030si X-ray Inspection Systems

The HI-SCAN 5030si is the most space-saving x-ray inspection system available and the compact design is ideal for both mobile and stationary desktop applications. Planned in modular design as a tabletop system, the HI-SCAN 5030si is a flexible configuration to allow for a variety of deployments. The HI-SCAN 5030si permits configurations with operator training, TIP- and image management functionalities.

The HI-SCAN 5030si is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 21 in. wide x 13 in. high

HI-SCAN 6040ds X-ray Inspection Systems

HI-SCAN 6040ds X-ray Inspection Systems

The HI-SCAN 6040ds is a robust, light-weight system for security checks in entrance areas. Therefore, it is excellently suited to be used as a mobile inspection system for changing locations. The system is filmsafe and able to penetrate up to 30 mm of steel. Using HI-MATPlus, the scanned objects can be visualized as classified material groups allowing the operator to easily and precisely identify contents. The excellent technical feature set facilitates maximum inspection quality at minimum inspection time.

The HI-SCAN 6040ds is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 24.4 in. wide x 16.5 in. high

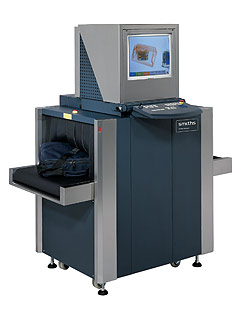

HI-SCAN 6030di X-ray Inspection Systems

HI-SCAN 6030di X-ray Inspection Systems

The HI-SCAN 6030di is a compact, lightweight x-ray inspection system that is ideal for lobbies and entry areas where low profile and moveable equipment is desired. Using HiTraX system technology with HI-MATPlus material classification, the HI-SCAN 6030di provides the operator with software enhanced image manipulations to facilitate accelerated security checks. Typical penetration for the HI-SCAN 6030di is 30 mm of steel and the wire resolution is up to AWG 39. Monitor protection housing and lockable keyboard mount are available as options.

The HI-SCAN 6030di is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 24.4 in. wide x 13 in. high

Back to top

HI-SCAN 6040i X-ray Inspection System

HI-SCAN 6040i X-ray Inspection Systems

The HI-SCAN 6040i offers operating personnel optimum support to make decisions and reduce inspection times considerably. This compact x-ray inspection system provides high image resolution and 24 Bit real time image processing. The man-machine interface is ergonomically designed to reduce operator fatigue. The HI-SCAN 6040i is part of the new ProLine system, which offers various possibilities of extension due to modular, flexible system design. Typical penetration for the HI-SCAN 6040i is 30 mm of steel and the wire resolution is up to AWG 39. With a larger tunnel size than the HI-SCAN 6030di, the HI-SCAN 6040i is well suited for larger personal objects or packages.

The HI-SCAN 6040i is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 24.4 in. wide x 16.5 in. high

Back to top

HI-SCAN 6046si X-ray Inspection System

HI-SCAN 6046si X-ray Inspection Systems

The HI-SCAN 6046si x-ray inspection system’s drastically enhanced image resolution of scanned objects represents a decisive advantage for image evaluations in security areas. With up to 37 mm of steel penetration and wire resolution up to AWG 41, the HI-SCAN 6046si produces extremely detailed x-ray images. The high resolution image display has double the resolution of previous x-ray inspection systems. The HI-SCAN 6046si increases security through advanced technology.

The HI-SCAN 6046si is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 24.4 in. wide x 18.1 in. high

Back to top

HI-SCAN 7555i X-ray Inspection Systems

HI-SCAN 7555i X-ray Inspection System

The HI-SCAN 7555i is a newly designed, compact x-ray inspection system with a larger tunnel opening than the HI-SCAN 6040i. The larger tunnel is suitable for larger personal items as well as briefcases and handbags. With high image resolution and 24 Bit real time image processing, the HI-SCAN 7555i offers operators the same technology as the 6040i that reduces inspection times considerably. The man-machine interface is ergonomically designed to reduce operator fatigue. Typical penetration for the HI-SCAN 7555i is 30 mm of steel and the wire resolution is up to AWG 39.

The HI-SCAN 7555i is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 29.7 in. wide x 21.9 in. high

Back to top

HI-SCAN 7555i X-ray Inspection Systems

HI-SCAN 7555si X-ray Inspection System

The HI-SCAN 7555si has the same tunnel size and options as the HI-SCAN 7555i. The difference is the enhanced image resolution, increased steel penetration up to 35mm of steel, and increased wire resolution, 41 AWG. The improved technology produces extremely detailed x-ray images that have double the image resolution of previous x-ray inspection systems. The HI-SCAN 7555si is the choice for high security applications.

The HI-SCAN 7555si is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 29.7 in. wide x 21.9 in. high

Back to top
