Freight and Cargo Solutions
Typical Applications:
- Freight and Cargo
- Shipping and Receiving Departments
- Nuclear Facilities
- Industrial Facilities
- Government Buildings
HI-SCAN 100100V X-ray Inspection System
The HI-SCAN 100100V is a compact x-ray screening system that permits the inspection of bulky as well as small items without any loss of x-ray image quality. Ideal for freight and cargo, this system is specifically designed to screen a large variety of package dimensions while meeting high security needs. The maximum conveyor load is 440 pounds. Typical penetration is up to 30 mm of steel and wire resolution is up to AWG 38.
The HI-SCAN 100100V is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.
Tunnel Size: 39.7 in. wide x 39.7 in. high
HI-SCAN 145180 X-ray Inspection System
The HI-SCAN 145180 is a low energy (140 kV) x-ray inspection system designed for palletized items. Its low conveyor bed makes it well suited for warehouses and receiving docks screening pallets and other large items. The maximum conveyor load is 2700 pounds. Typical penetration is up to 30 mm of steel and wire resolution is 38 AWG.
The HI-SCAN 145180 is Department of Homeland Security (DHA) certified under the Anti-Terror Technology provision of the Safety Act.
Tunnel Size: 54 in. wide x 71 in. high
HI-SCAN 150150-300 kV X-ray Inspection System
The HI-SCAN 150150-300 is a compact medium energy (300 kV) x-ray cargo inspection system that is ideal for inspecting skeleton containers, pallets, very large parcels, and crates. Typical penetration is up to 60 mm of steel and wire resolution is AWG 34. The maximum conveyor load is 2700 pounds. Therefore, the HI-SCAN 150150-300 is suitable for freight and cargo that require inspection of bulk items without the need to break apart pallet shipments.
The HI-SCAN 150150-300 kV is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.
Tunnel Size: 61 in. wide x 61 in. high
HI-SCAN 180180-300 kV X-ray Inspection System
The HI-SCAN 180180-300 x-ray cargo inspection system is compact and medium energy (300 kV). Its excellent image presentation allows for high security inspections of pallets and other large containers, such as a LD-3 airfreight container, without the need to break apart shipments. The conveyor height is 12 inches off the floor, which allows for easy loading and unloading of heavy objects. The maximum conveyor belt load is 5,512.5 pounds. Typical penetration is up to 60 mm of steel and the wire resolution is AWG 34.
The HI-SCAN 180180-300 kV is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.
Tunnel Size: 71.3 in. wide x 71.3 in. high

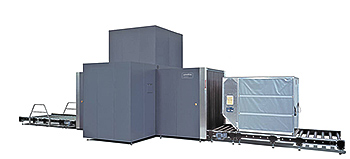

HI-SCAN 180180-300kV-2is X-ray Inspection System
The HI-SCAN 180180-300kV-2is is the advanced medium energy cargo inspection system. Designed to inspect pallets and other large containers, the HI-SCAN 180180-300kV-2is has two x-ray generators that provide a dual view in one screening process. This system shortens the inspection time as well as increases the reliability. Using this inspection system, pallet shipments do not need to be broken apart. Like the HI-SCAN 180180-300kV, the conveyor height is 12 inches off the floor, which allows for easy loading and unloading of heavy objects. The maximum conveyor belt load is 2,700 pounds. Typical penetration is up to 60 mm of steel and the wire resolution is AWG 34.
The HI-SCAN 180180-300kV-2 is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.
Tunnel Size: 71.3 in. wide x 71.3 in. high
