Shipping and Receiving Department Solutions

Typical Applications:

  • Shipping and Receiving Departments
  • Nuclear Facilities
  • Industrial Facilities
  • Government Buildings
  • Financial Institutions
  • Courthouses
  • Commercial Buildings
  • Correctional Facilities

HI-SCAN 6040i X-ray Inspection System

HI-SCAN 6040i X-ray Inspection Systems

The HI-SCAN 6040i offers operating personnel optimum support to make decisions and reduce inspection times considerably. This compact x-ray inspection system provides high image resolution and 24 Bit real time image processing. The man-machine interface is ergonomically designed to reduce operator fatigue. The HI-SCAN 6040i is part of the new ProLine system, which offers various possibilities of extension due to modular, flexible system design. Typical penetration for the HI-SCAN 6040i is 30 mm of steel and the wire resolution is up to AWG 39. With a larger tunnel size than the HI-SCAN 6030di, the HI-SCAN 6040i is well suited for larger packages.

The HI-SCAN 6040i is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 24.4 in. wide x 16.5 in. high


HI-SCAN 6046si X-Ray Inspection System

HI-SCAN 6064si X-ray Inspection Systems

The HI-SCAN 6046si x-ray inspection system’s drastically enhanced image resolution of scanned objects represents a decisive advantage for image evaluations in security areas. With up to 37 mm of steel penetration and wire resolution up to AWG 41, the HI-SCAN 6046si produces extremely detailed x-ray images. The high resolution image display has double the resolution of previous x-ray inspection systems. The HI-SCAN 6046si increases security through advanced technology.

The HI-SCAN 6040si is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 24.4 in. wide x 18.1 in. high


HI-SCAN 7555i X-ray Inspection Systems

HI-SCAN 7555i X-ray Inspection System

The HI-SCAN 7555i is a newly designed, compact x-ray inspection system with a larger tunnel opening than the HI-SCAN 6040i. The larger tunnel is suitable for bigger packages and boxes. With high image resolution and 24 Bit real time image processing, the HI-SCAN 7555i offers the same technology as the HI-SCAN 6040i that reduces inspection times considerably. The man-machine interface is ergonomically designed to reduce operator fatigue. Typical penetration for the HI-SCAN 7555i is 30 mm of steel and the wire resolution is up to AWG 39.

The HI-SCAN 7555i is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 29.7 in. wide x 21.9 in. high

Back to top

HI-SCAN 7555i X-ray Inspection Systems

HI-SCAN 7555si X-ray Inspection System

The HI-SCAN 7555si has the same tunnel size and options as the HI-SCAN 7555i. The difference is the enhanced image resolution, increased steel penetration up to 35mm of steel, and increased wire resolution, 41 AWG. The improved technology produces extremely detailed x-ray images that have double the image resolution of previous x-ray inspection systems. The HI-SCAN 7555si is the choice for high security applications.

The HI-SCAN 7555si is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 29.7 in. wide x 21.9 in. high

Back to top

HI-SCAN 9075 X-ray Inspection System

HI-SCAN 9075 X-ray Inspection Systems

The HI-SCAN 9075 is the ideal imaging system for scanning bulky, oversized objects. Heavy packages, up to 331 pounds, can be easily placed on the conveyor system, since the conveyor belt is only 13.7 inches above the ground. The HI-SCAN 9075 is also available as a mobile unit to facilitate changing screening locations. Typical penetration is up to 27 mm of steel and the wire resolution is up to AWG 38.

The HI-SCAN 9075 is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 35.8 in. wide x 30.3 in. high

Back to top

HI-SCAN 100100V X-ray Inspection System

HI-SCAN 100100V X-ray Inspection Systems

The HI-SCAN 100100V is a compact x-ray screening system that permits the inspection of bulky as well as small items without any loss of x-ray image quality. Ideal for shipping and receiving departments, this system is specifically designed to screen a large variety of package dimensions while meeting high security needs. The maximum conveyor load is 440 pounds. Typical penetration is up to 30 mm of steel and wire resolution is up to AWG 38.

The HI-SCAN 100100V is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 39.7 in. wide x 39.7 in. high

Back to top

HI-SCAN 145180 X-ray Inspection System

HI-SCAN 145180 X-ray Inspection Systems

The HI-SCAN 145180 is a low energy (140 kV) x-ray inspection system designed for palletized items. Its low conveyor bed makes it well suited for warehouses and receiving docks screening pallets and other large items. The maximum conveyor load is 2700 pounds. Typical penetration is up to 30 mm of steel and wire resolution is 38 AWG.

The HI-SCAN 145180 is Department of Homeland Security (DHA) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 54 in. wide x 71 in. high

Back to top

HI-SCAN 150150-300 kV X-ray Inspection System

HI-SCAN 150150-300 X-ray Inspection Systems

The HI-SCAN 150150-300 is a compact medium energy (300 kV) x-ray cargo inspection system that is ideal for inspecting skeleton containers, pallets, very large parcels, and crates. Typical penetration is up to 60 mm of steel and wire resolution is AWG 34. The maximum conveyor load is 2700 pounds. Therefore, the HI-SCAN 150150-300 is suitable for shipping and receiving departments that require inspection of bulk items without the need to break apart pallet shipments.

The HI-SCAN 150150-300 kV is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 61 in. wide x 61 in. high

Back to top

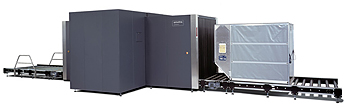

HI-SCAN 180180-300 kV X-ray Inspection System

HI-SCAN 180180-300 kV X-ray Inspection System

The HI-SCAN 180180-300 x-ray cargo inspection system is compact and medium energy (300 kV). Its excellent image presentation allows for high security inspections of pallets and other large containers, such as a LD-3 airfreight container, without the need to break apart shipments. The conveyor height is 12 inches off the floor, which allows for easy loading and unloading of heavy objects. The maximum conveyor belt load is 5,512.5 pounds. Typical penetration is up to 60 mm of steel and the wire resolution is AWG 34.

The HI-SCAN 180180-300 kV is Department of Homeland Security (DHS) certified under the Anti-Terror Technology provision of the Safety Act.

Tunnel Size: 71.3 in. wide x 71.3 in. high
