Protection Solutions

Bullet Resisting Windows

Typical Applications:

• Government Buildings
• Corporate Entries
• CEO Offices
• Convenience Stores
• Petroleum Retailers
• Police Station Dispatch Areas
• Cash Rooms
• Hospitals
• Pharmacies

EXTW Series

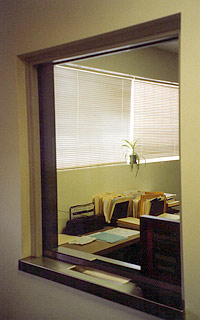

The EXTW Series transaction windows are available in prime finish or brushed stainless steel finish. The removable glass stops allow this unit to have broken glass replaced without removing the entire frame. The EXTW has an in-frame natural voice communication system for interior applications. For exterior requirements, the glass is hard glazed and incorporates a NASD-6 exterior speaker device. The EXTW is available in performance levels 1-8. Parcel shelves with deal trays are offered in plastic laminate, stainless steel or solid surface counters. This unit may also be applied to existing counters. The EXTW Series is available in standard and custom sizes.

Ballistic Levels: Available in all Ballistic Levels (see Ballistic Chart)

SLTW Series

The SLTW Series sliding transaction window offers the user the flexibility to operate the unit in the open position during daytime hours but closed for nighttime security. The SLTW is fabricated to perform at hand gun protection using all plastic transparent ballistic materials. A stainless steel deal tray is standard within a plastic laminate shelf with optional stainless steel shelf or solid surface shelf with an integral deal tray. The unit is offered both in standard and custom sizes. The anodized aluminum frame is available in clear, dark bronze, and black with powder coated colors an option. Multiple sliders or other custom configurations are available.

Ballistic Levels: Available in Ballistic Levels 1, 2, 3, and 6 (see Ballistic Chart)

EXTW-A Series

The EXTW-A Series is an anodized aluminum transaction window that aesthetically matches the EXVW-A Vision Window frames for areas where both fixed windows and transaction windows must co-exist. Passive voice transmission is provided through a NASD-6 speaker device. The unit is provided with a parcel shelf and deal tray. The customer must specify material used (plastic laminate, stainless steel, or solid surface counters). The EXTW-A series is also optional without the shelf so the window can be applied to an existing counter.

Ballistic Levels: Available in all Ballistic Levels (see Ballistic Chart)

EXVW-A Series

The EXVW-A Series windows are an anodized extruded aluminum store front system. The frames are rated level 3 on their own. If rifle protection is necessary, the frames can be upgraded to achieve up to level 8 protection. These units are available as single windows or multiples with mullions. Entire systems including doors are available to match non ballistic aluminum storefront systems. Standard finishes are clear, dark bronze and black anodized. Powder coated and epoxy painted colors are special order options. Custom configurations are available.

Ballistic Levels: Available in all Ballistic Levels (see Ballistic Chart)

EXVW Series

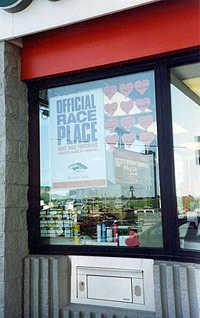

The EXVW Series bullet resisting fixed window and frame is ideal in interior or exterior applications where communication is not required. Bullet resisting glass is used in exterior applications. Bullet resisting plastic may be used in interior applications. Prime finish or stainless steel hollow metal ballistic rated frames contain the transparent material. The EXVW is available in standard and custom sizes.

Ballistic Levels: Available in all Ballistic Levels (see Ballistic Chart)

NASD-6/NASD-6F Series

The NASD-6 and NASD-6F speaker devices are for transaction windows too wide for “in-frame” passive communication or for exterior transaction windows with a requirement for a natural voice system. The NASD-6 is a cast and polished stainless steel device suitable for performance levels 1-3. The NASD-6F is designed for level 1 only and is fabricated from brushed stainless steel. Both units come with mounting screws, spacers, and mylar draft shields. As in most glass mounted speaker devices, if ballistically attacked, spalling could result.

Ballistic Levels: See Ballistic Chart
